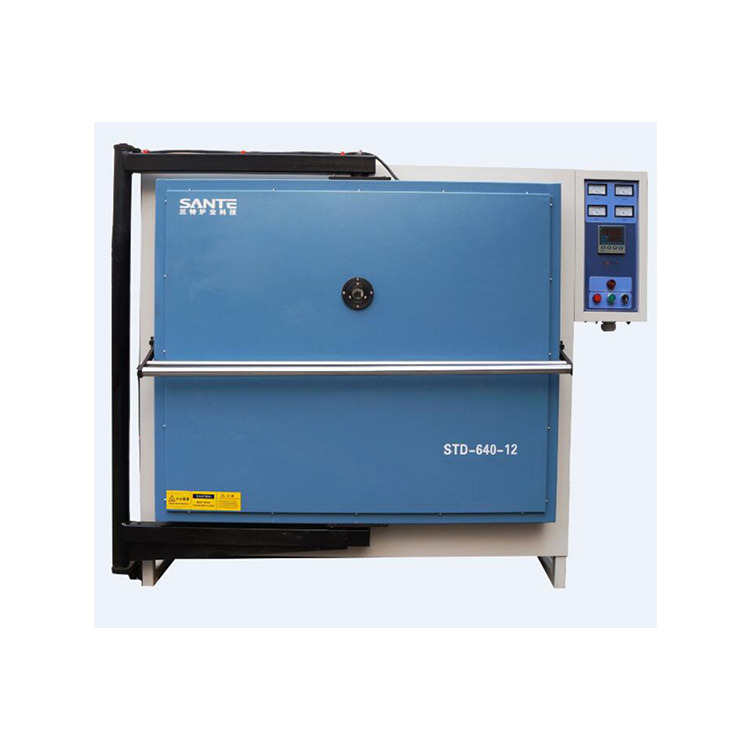

1200 Degree 5 sides Refractory Chamber Glass Melting Furnace
| Model | STDB-96-12 | STDB-288-12 | STDB-640-12 | STDB-1200-12 | STDB-2160-12 | STDB-3000-12 | Customized |
| Chamber size(WxLxH)mm | 400x600x400 | 600x800x600 | 800x1000x800 | 1000x1200x1000 | 1200x1500x1200 | 1500x2000x1000 | Any size |
| Type | glass melting Furnace | ||||||
| Furnace structure | Chamber material, temperature controller system, heating element, furnace shell and other assistant parts | ||||||
| Max temperature | 1200℃ | ||||||
| Continue Operating Temp. | 1150℃ | ||||||
| Power supply | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| Heating element | High quality alloy resistance wire | ||||||
| Chamber material | High temperature polycrystal alumina ceramic fiber material | ||||||
| Temperature precision | ±1℃ | ||||||
| Thermocouple | N type | ||||||
| Temperature controller | YUDIAN intelligent microcomputer PID controller can program 30 segments | ||||||
| Electronic component | DELIXI make | ||||||
| Heating rate | ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace ) | ||||||
| Safety protection | Overheat and thermocouple-break alarm | ||||||
| Certification | ISO9001 CE SGS | ||||||
| Furnace shell | high quality cold-rolled steel sheets CNC processing | ||||||
| Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||
| Accessories | One pair of high temperature furnace gloves | ||||||
| One piece of crucible steel tong - One pair of crucible steel tongs | |||||||
| Optional | Paperless recorder | ||||||
| Stainless steel exhaust chimney | |||||||
| Alumina crucible | |||||||
| Electric lifting structure | |||||||
Applications:
1200℃ STDB Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, high quality chamber materials and stable temperature control system ensure the reliability of experimental data.The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is fine, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate.
Pictures
Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. SANTE products cover 1000℃~1800℃ Muffle furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on
Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
